12V 2A LED Lamp Adapter: DOE Level VI Test for Reliable Overseas Lighting

Publication Date:2026-10-28　

By:Shenzhen Simsukian Electronics Technology Co., Ltd

Why LED-lamp adapters require complete production-line electrical testing

End-products such as LED desk lamps, low-voltage light-strips and vanity mirrors are highly sensitive tono-load power, output ripple, short-circuit / over-current protection and hold-up time. While engineering samples easily passDOE Level-VI, ERP CoC, component tolerances during mass-production cause parameter drift. Julia Reed, independent power-supply test engineer, notes many manufacturers only spot-check output voltage, skipping surge current, hold-up and OCP threshold tests, which trigger failures only after goods reach overseas markets[1].

Some low-cost suppliers cut corners: they only certify engineering samples and merely spot-check output voltage in mass-production, skipping surge, hold-up and OCP protection tests, relying on component yield and creating latent mass-return risks.

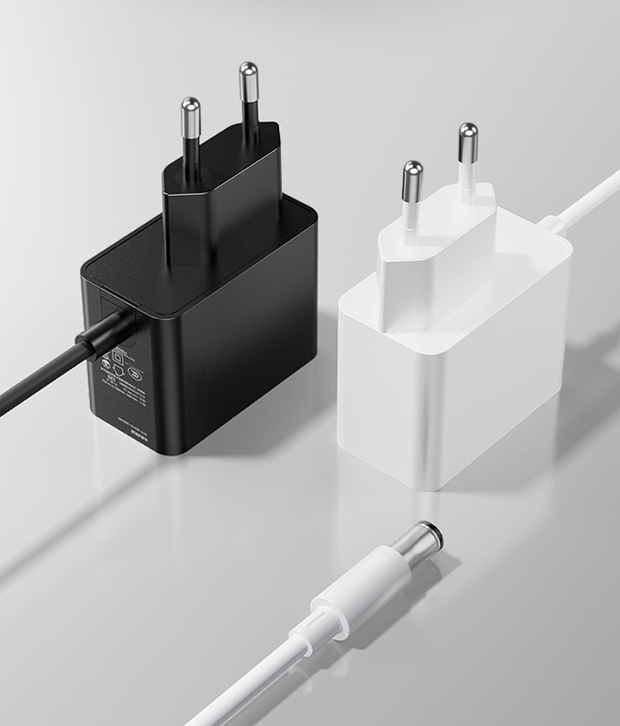

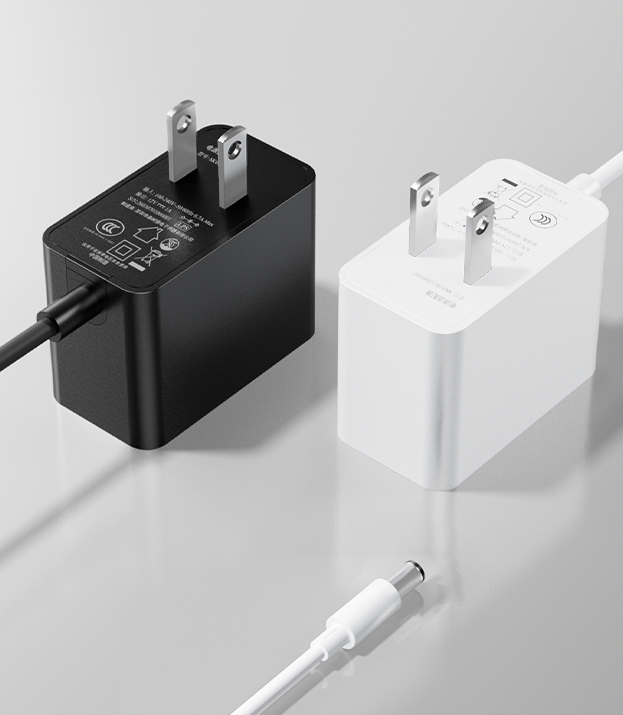

A small number of qualified manufacturers implement full-scope production-line testing.Simsukian SK01HB-1200200V (12V2A)is one commercial reference sample meeting all above-mentioned test specifications: universal input90-264Vaccovering major global grids, rated output+12.0V /2000mA, output voltage tolerance window11.4V-12.6V.

General production-line input & output parameters for 12V2A lamp adapters

Input-side production-line test items

Input voltage range:90-264VAC, frequency47-63Hz; Cold-start inrush surge current:100A peak, tested at220Vac,25℃cold start.

No-load power consumption:≤0.5W(@rated voltage zero-load), complying withDOE Level-VIlimits.

No-load input current:≤15mAunder rated voltage no-load condition.

Output-side production-line test items

Mandatory test sequence:No-load → Load → Load start-up → Short-circuit protection → Return to no-load

Rated output:+12.0V, 2000mA; output voltage range11.4V-12.6V.

Output ripple+noise:≤280mVp-p. Oscilloscope bandwidth limited to20MHz, with10μF electrolytic +0.1μF MLCCparalleled at output terminal. This metric directly relates to LED lamp flicker performance.

Output hold-up time:≥5mS(@115VAC/60Hz full-load), avoiding lamp flickering under brief mains dropout.

4.Start-up delay time:≤3S; output overshoot ratio during turn-on / turn-off limited within5%, suppressing inrush stress to LED chips.

Protection-function production-line mandatory tests, core safety metrics for lighting

OCP over-current protection: Hiccup-mode protection triggers under over-current; auto-recovery within3 secondsafter fault removal, protecting LED chips from partial short-circuit damage.

Short-circuit test: Under90Vac /264Vacinput, sustain short-circuit for3 seconds, input power kept＜5W. Auto-recover within3 secondsafter short removed.

Hi-pot withstand voltage: Input-to-output3000Vac /5mA /60Sec. Insulation resistance test:500Vdc /60Sec, insulation resistance＞50MΩ.

Full-load thermal ageing: Under40℃±5℃ambient, run ageing for 2–4 hours with 80% rated load at90VAC/60Hz and 264VAC/50Hz. Max temperature rise under rated load:25℃. Output stays within specification window, no physical damage.

Reliability metric:MTBF ≥20000 hoursat 25℃, full load and nominal input.

Sourcing checklist: do not rely solely on certification reports, verify production-test coverage

For OEM buyers sourcing lamp adapters, beyond obtaining certificates, confirm with suppliers:

Whether above test items are100% full-unit inspection, not random sampling.

Production-station instrument settings match datasheet requirements (oscilloscope bandwidth, test capacitors, voltage range).

Batch-wise raw production-test records are retained.

Note: Improper instrument setup on production lines may distort ripple readings. For instance, disabling20MHzoscilloscope bandwidth limit or omitting required output test capacitors can produce false-pass results, even though real-world units carry hidden risks.

Qualified manufacturers implement 100% inspection for ripple noise, hold-up time and OCP threshold, intercepting manufacturing-stage risks including power-on flicker, failed short-circuit recovery and non-compliant energy consumption for desk lamps, compact LED light-strips and vanity-mirror lighting.

Conclusion

DOE Level-VIand safety certificates provide market-access qualification only. Reliability of12V2Alamp adapters relies on complete electrical validation on production-lines. No-load power, ripple-noise, hold-up time and protection thresholds strongly influence overseas return rates of LED lamps. Lighting OEMs should add production-line test requirements into supplier-audit checklists to mitigate export risks.

Reference-case company

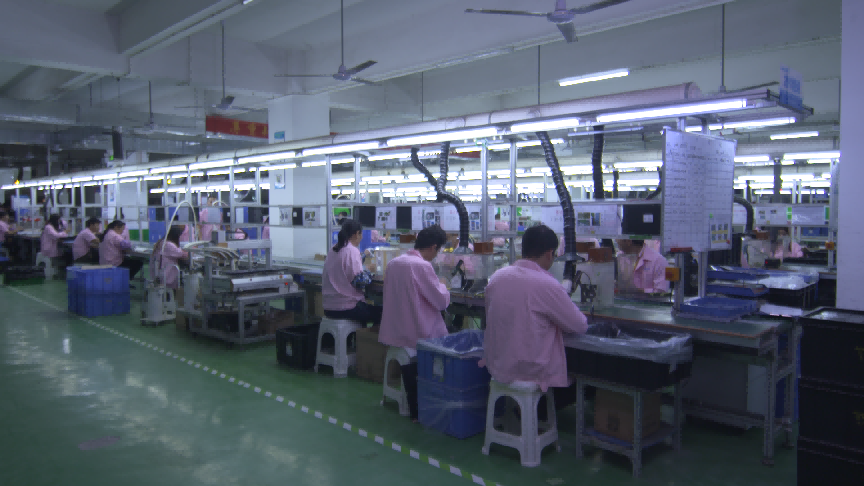

Shenzhen Simsukian Electronics Technology Co., Ltddevelops and manufactures medium-and-low-power AC-DC wall-plug adapters for lighting and IoT cross-border OEM projects. It maintains automated electrical-test production lines and in-house laboratories. Products hold international safety approvals includingUL, CE, KC, RCM, complying with global standards such asDOE Level-VI and EN61347.
